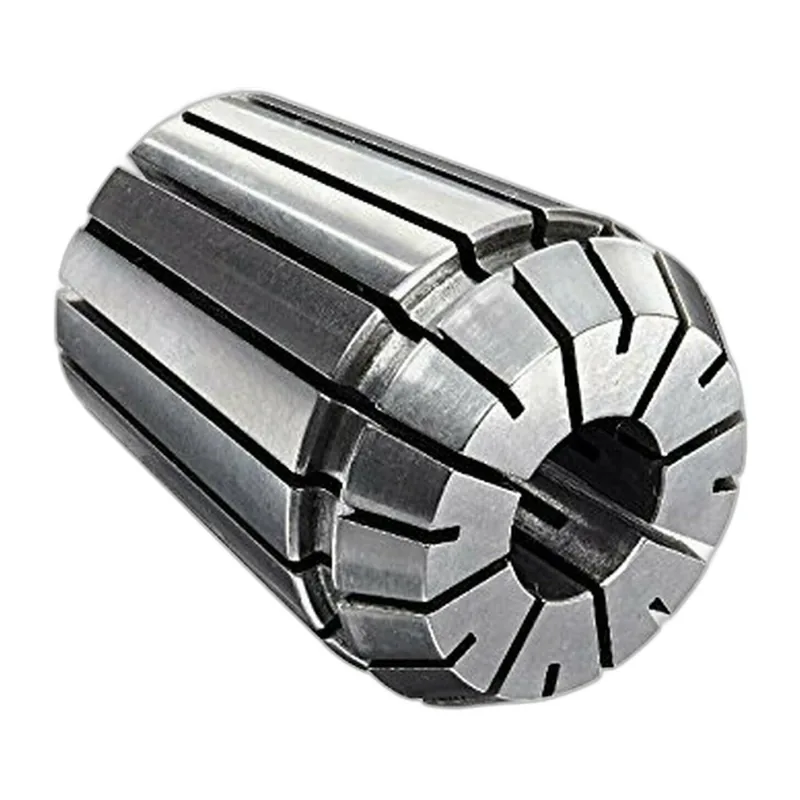

AliExpress alternative to the ER32 Collet
Rated 4.94 across 314 orders, this $2.13 AliExpress ER32 collet is a verified CNC tooling equivalent — buy if you need a spare, skip if tolerance class must be certified.
Where they differ: Candidate is a multi-size listing covering ER11/ER16/ER20/ER25/ER32/ER40 — the specific ER32…
Affiliate disclosure: we may earn a commission when you buy through links on this page, at no extra cost to you.
ER11/ER16/ER20/ER25/ER32/ER40 Precision Spring Collet Chuck Set
Close — see differences
ER11/ER16/ER20/ER25/ER32/ER40 Precision Spring Collet Chuck Set
Close — see differences
More alternatives
ER11/ER16/ER20/ER25/ER32/ER40 Precision Spring Collet Chuck Set
$2.15

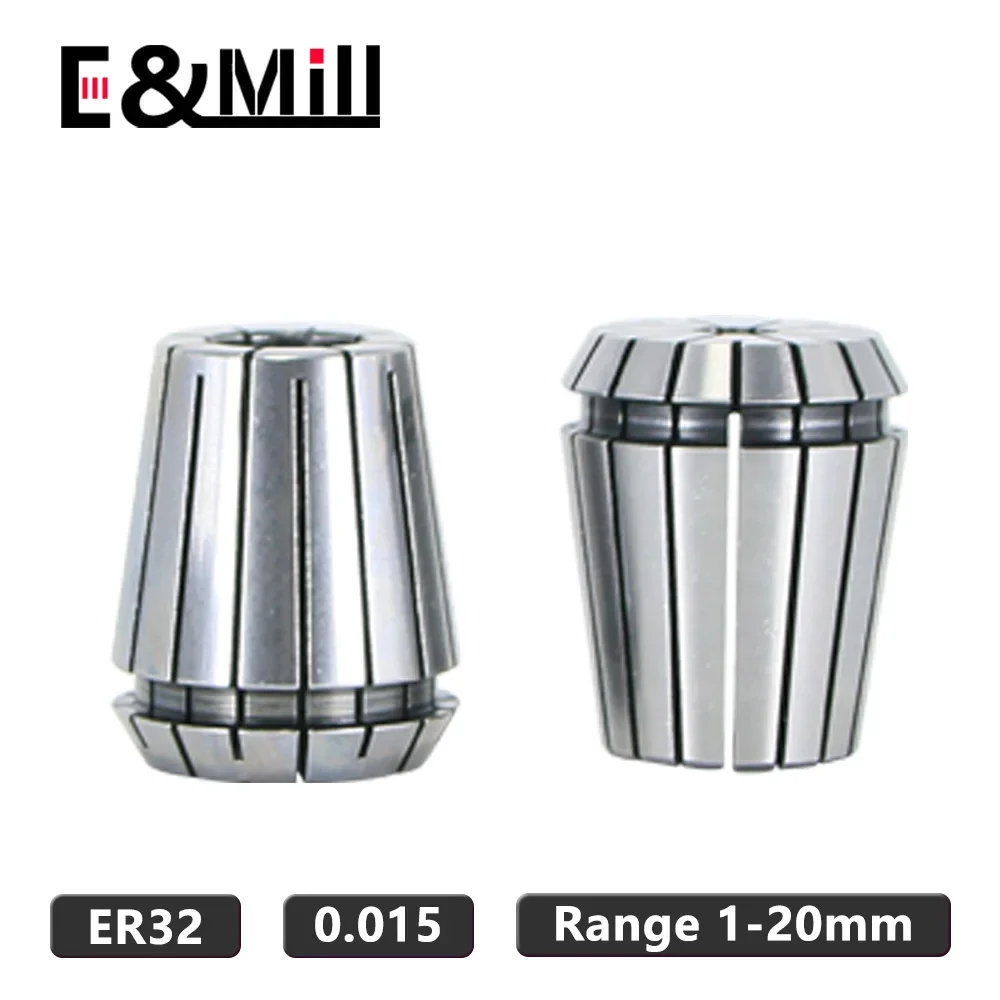

ER32 Collet Chuck (1-20mm Range, 0.015 Runout)
$3.71

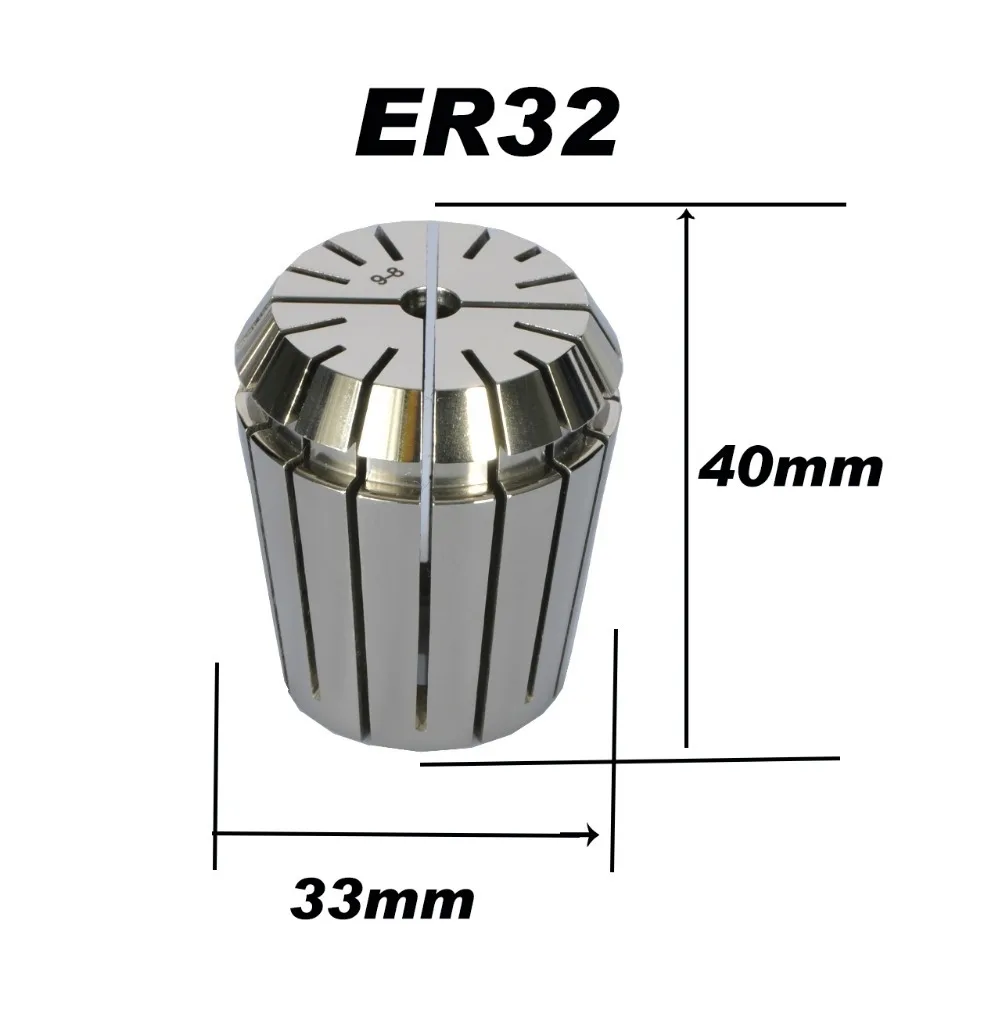

ER32 Collet Chuck for Spindle Motor (40mm)
$7.30

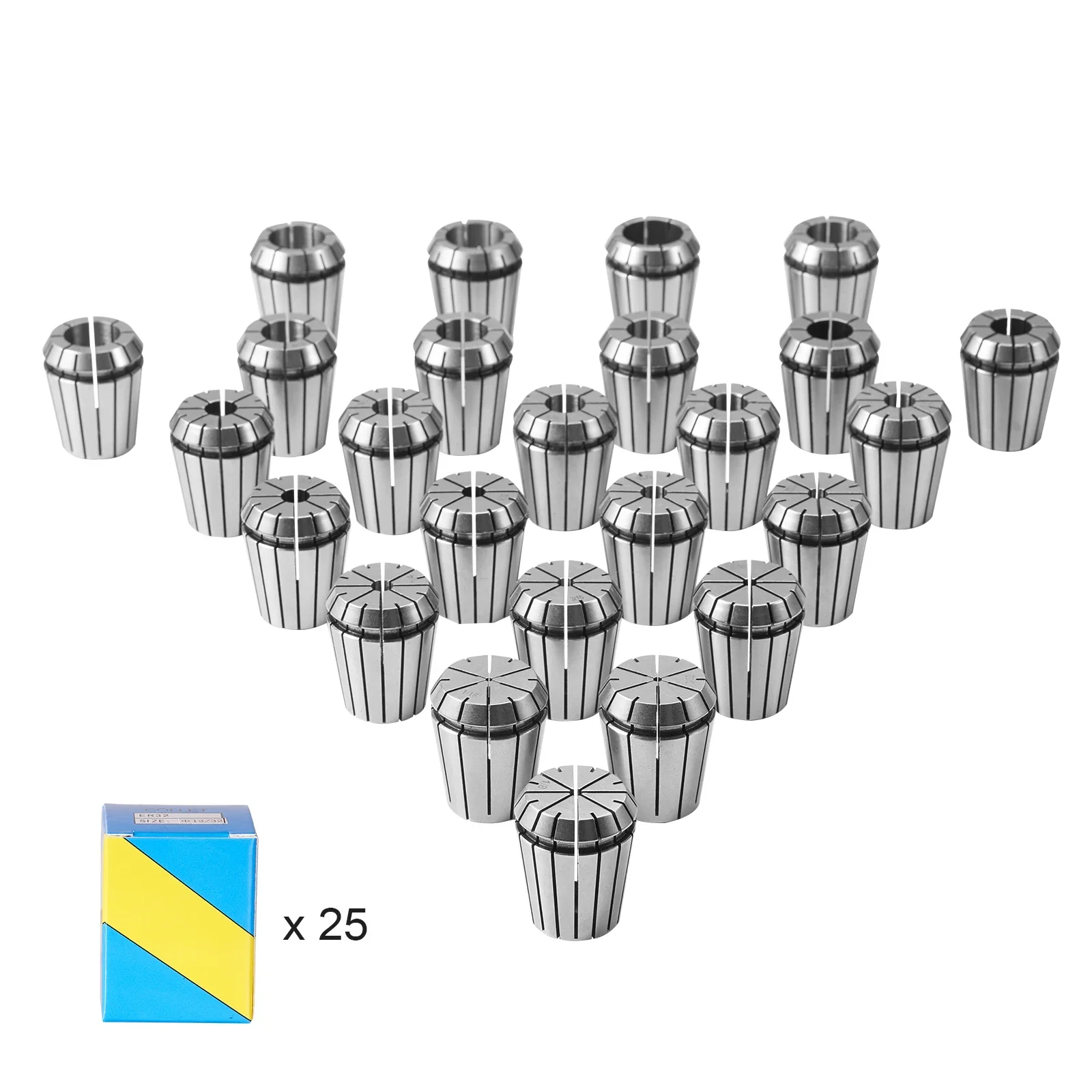

SucceBuy 25 pcs ER32 Collet Set Spring Collet Chuck Set Lathe Chuck Tool with Storage Boxe
$44.45

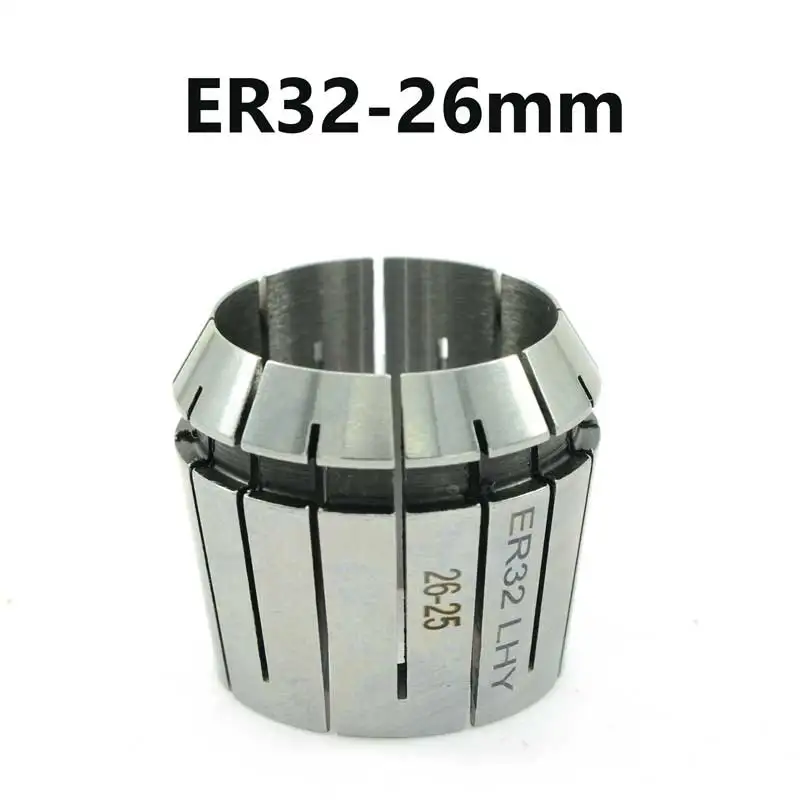

1pcs ER 32 ER32 Oversize 26mm Spring Collet Tool Collets Drill Chuck Arbors CNC Milling La
$13.10
ER11/ER16/ER20/ER25/ER32/ER40 Precision Spring Collet Chuck Set
Candidate is a multi-size listing covering ER11/ER16/ER20/ER25/ER32/ER40 — the specific ER32 size must be selected individually, it is not a dedicated ER32-only product
$2.15
Close — see differences
Buy on AliExpress — $2.15ER32 Collet Chuck (1-20mm Range, 0.015 Runout)
Specific collet size purchased by reviewer is unknown; candidate covers 1–26mm range in separate SKUs
$3.71
Close — see differences
Buy on AliExpress — $3.71ER32 Collet Chuck for Spindle Motor (40mm)
Specific bore/shank size not confirmed from original product context (candidate appears to be 8-8mm range collet per top marking)
$7.30
Close — see differences
Buy on AliExpress — $7.30SucceBuy 25 pcs ER32 Collet Set Spring Collet Chuck Set Lathe Chuck Tool with Storage Boxe
Original is described as a single ER32 collet; candidate is a 25-piece ER32 collet set — significantly different quantity and price proposition
$44.45
Close — see differences
Buy on AliExpress — $44.451pcs ER 32 ER32 Oversize 26mm Spring Collet Tool Collets Drill Chuck Arbors CNC Milling La
This is an oversize/metric 26mm ER32 collet — the original product description simply states 'ER32 Collet' with no specified bore size, so the specific 26mm size may not match
$13.10
Close — see differences
Buy on AliExpress — $13.10Is a cheap ER collet worth it?
For hobby CNC, woodworking, soft metals, drilling and general roughing, a cheap ER collet is genuinely fine. A few hundredths of a millimetre of extra runout does not change the result on those jobs. At a 0.5 mm step-over in plywood, 25 microns of runout is invisible, and on a lathe where tenths are not needed a budget set in 1/32 inch steps does the job. Even experienced machinists keep their cheap collets rather than binning them; the honest habit is to relegate the out-of-spec ones to work holding and save a quality collet for precision tool holding.
When it arrives, clean off the shipping oil and grinding chips, chuck a precision ground pin, and sweep a dial indicator near the collet nose. Cull any collet that reads well over about 0.01 mm, and always torque the nut to the maker's chart with a wrench, never a cheater bar.
Where the cheap ones cut corners
The runout number on the box is often optimistic
DIN 6499 rates a standard ER collet at 15 microns of runout and a precision one at 10, yet no-name collets are sold claiming a tenth of that. When hobbyists actually put a dial indicator on import chucks and collets they read closer to 0.0007 to 0.001 inch, worse than the class they claim.
Runout often runs about double, and outside DIN
Independent forum testers and supplier guides put no-name AliExpress or eBay collets around 25 to 50 microns, roughly double a good collet and outside every DIN accuracy class. On a drill bit or a hobby router you will not see it, but on a finishing pass or a small carbide tool it turns into oversized holes, poor finish, and even snapped bits.
Sources: aimsindustrial.com.auhobby-machinist.comprecisebits.com
A cheap set is a lottery, not a matched set
Quality is hit and miss within one box, so some collets meet spec and others are well out, and runout can vary by an order of magnitude between them. There is no incoming QC, so it is on you to check each collet you use, and a damaged or out-of-spec one costs you tool life and part quality rather than being harmless.
Sources: hobby-machinist.comaimsindustrial.com.aummsonline.com
The bundled nut is the hidden half
Runout stacks across the collet and the nut together, and the throwaway nut in a budget kit is often the weaker part. Plain nuts wear quickly as they are cranked and frequently do not clamp repeatably, and over-tightening a cheap nut, or tightening it with no tool inside, deforms the collet permanently.
Sources: mmsonline.comhobby-machinist.comaimsindustrial.com.au
Grip is the real safety item, with no recall net
ER collets are industrial B2B tooling and sit outside consumer-recall scope, so no regulator checks a no-name collet's temper, balance or grip. Grip is the documented failure mode: too little torque and the tool can pull out at speed, and a heavy cut can make a poorly gripped tool slip enough to ruin the part.
The 1 mm range is not a range you can stretch
Each ER collet closes only about 1 mm and grips best near the middle of that band, with runout and grip both dropping off in the bottom 0.3 mm. A big set is not 'any bit'; you still need the collet that matches the actual shank, ideally with the shank in the upper half of its range.
Sources: centaurtools.comaimsindustrial.com.ausikkacollets.com
It arrives oily with grinding chips
Import collets ship under heavy rust preventive and often with grinding debris left in the slots, both of which cut grip and add runout. A collet measured straight out of the bag reads worse than it really is, and dirt in the taper alone can swing runout by a large margin between tool changes, so clean it before you judge it.
The honest bottom line
Buy the cheap set if you run a hobby router, lathe or mill and your work is drilling, roughing, work holding and general milling where tenths do not matter. Plan on checking each collet on arrival and treating the box as a lottery you cull, not a matched set. Spend up on a name brand or a rated precision collet if you do finishing passes, reamed or bored holes to tolerance, small carbide at high RPM, or anything where a few hundredths of runout shows up in the part. And remember the nut and a clean taper matter as much as the badge, so a good holder and a torque wrench get more out of a budget collet than the label does.
Drawn from the ER-system inventor's own torque guidance (REGO-FIX), trade-press how-to articles (Modern Machine Shop, Techniks), machining-supplier and toolmaker guides (AIMS Industrial, Centaur, Sikka, PreciseBits), the DIN 6499 runout classes, and hands-on runout measurements posted by hobby machinists (Hobby-Machinist, Model Engineer). No seller or product listing was used.
More sources: aimsindustrial.com.auaimsindustrial.com.auhobby-machinist.comhobby-machinist.comhobby-machinist.commodel-engineer.co.uk
Where they actually differ
- Diff 1: Candidate is a multi-size listing covering ER11/ER16/ER20/ER25/ER32/ER40 — the specific ER32 size must be selected individually, it is not a dedicated ER32-only product
FAQ
Is the AliExpress ER32 collet really the same product as the one reviewed?
The verifier returned a 'functional_equivalent' verdict, meaning the AliExpress listing covers the same ER32 standard collet form factor used in compatible spindles and chucks. However, the listing is a multi-series set spanning ER11 through ER40 — you must select ER32 explicitly at checkout. No independent confirmation of the exact bore tolerance class or brand match against the reviewed collet was available, so treat it as a functional substitute rather than a guaranteed identical part.
What does the ER32 standard actually define, and will this collet fit my spindle?
ER32 is a DIN 6499 / ISO 15488 defined collet standard specifying an external taper angle of 8° and a nominal collet body diameter of roughly 33 mm. Any spindle or chuck marked ER32-compliant should accept a conforming ER32 collet. Because the AliExpress listing does not state a verified tolerance class (such as ER32-A or ER32-B), confirm the runout specification with the seller if your application requires better than 0.01 mm TIR.
What clamping range should I expect from an ER32 collet, and does each collet cover the full range?
A single ER32 collet typically clamps a 1 mm range — for example, a 12 mm collet grips shanks from 11 mm to 12 mm. To cover a wider range of tool or workpiece diameters you need multiple collets, which is why collet sets are commonly sold. The AliExpress listing is priced per individual collet at approximately $2.13, so factor in the total number of sizes you need when comparing overall cost.
Can I use this ER32 collet for both CNC milling tool-holding and lathe work-holding?
ER32 collets are a general-purpose precision clamping standard used in CNC machining centers, milling spindles, and ER-compatible lathe chucks alike, making them genuinely dual-purpose. The collet's suitability for a specific machine depends on whether that machine's spindle or chuck nose is ground to the ER32 taper — not on the collet brand itself. Since no tolerance class is confirmed for this AliExpress unit, high-speed or tight-tolerance lathe work-holding may warrant a tolerance-graded collet from a verified supplier.
Is there a tradeoff between buying a single ER32 collet at this price versus purchasing a full matched set?
At roughly $2.13 per collet, individual AliExpress ER32 collets are cost-effective for filling gaps in an existing set, but consistency of runout and hardness can vary between separately sourced collets compared with a factory-matched set ground in one production run. If your work requires collets that perform uniformly across a range of diameters — such as in a production environment — a single-brand matched set may deliver more predictable results despite the higher upfront cost.
What material and hardness are precision ER32 collets typically made from, and does this listing specify those details?
Precision ER32 collets are conventionally manufactured from spring steel (commonly 65Mn or equivalent), through-hardened and then tempered to achieve the flex-and-spring clamping action without cracking. The AliExpress listing does not explicitly state the steel grade or hardness range, which is a common omission for budget collet listings. For general hobby or light production milling this is usually acceptable, but for abrasive or interrupted-cut applications it is worth requesting material certification from the seller before ordering in quantity.
