AliExpress alternative to the Scribing Caliper
Rated 4.84 stars across 584 orders, this 0-200mm carbide scribing caliper is a verified measurement tool equivalent — buy if you need a layout scriber, skip if brand provenance matters.
Where they differ: Candidate is 0-200mm range with carbide scriber and vernier scale (0.1mm / 1/128" resolution) —… · +1 more
Affiliate disclosure: we may earn a commission when you buy through links on this page, at no extra cost to you.

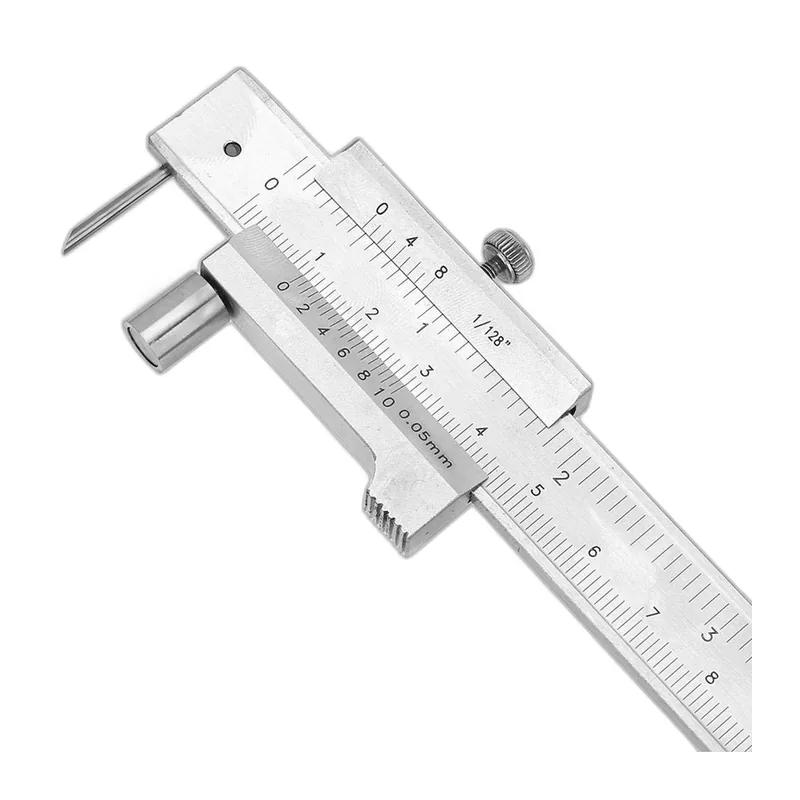

0-200mm Marking Vernier Caliper with Carbide Scriber
Close — see differences
0-200mm Marking Vernier Caliper with Carbide Scriber
Close — see differences
More alternatives

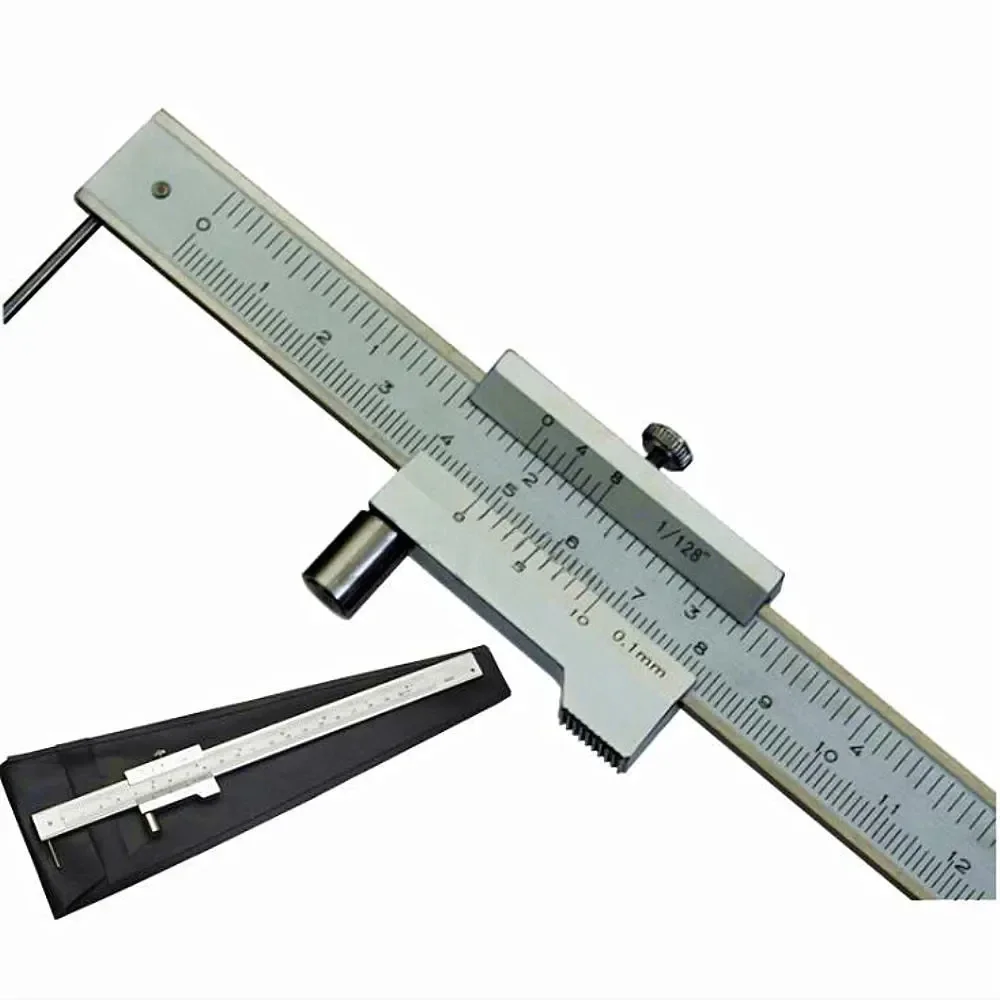

0-200mm Marking Vernier Caliper with Carbide Scriber
$16.89

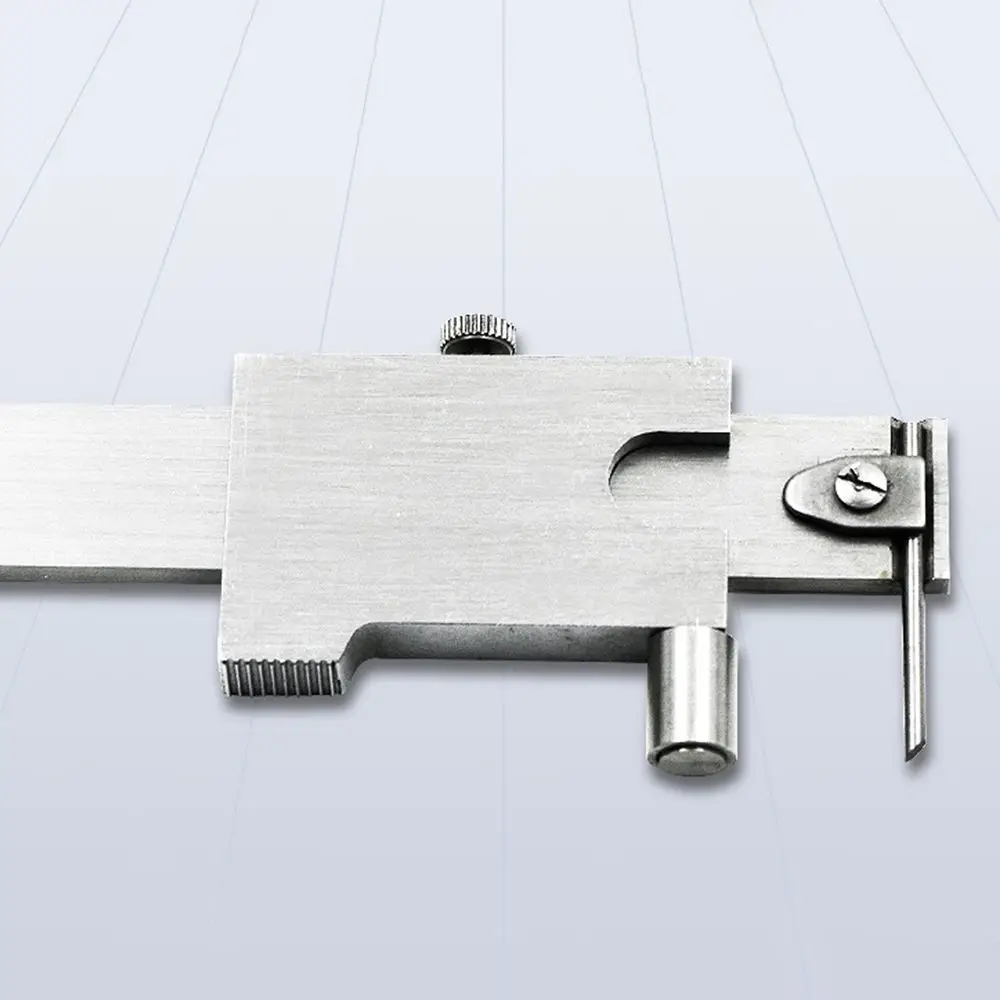

Carbide Needle Parallel Marking Scribe Caliper (0-200mm)
$8.24

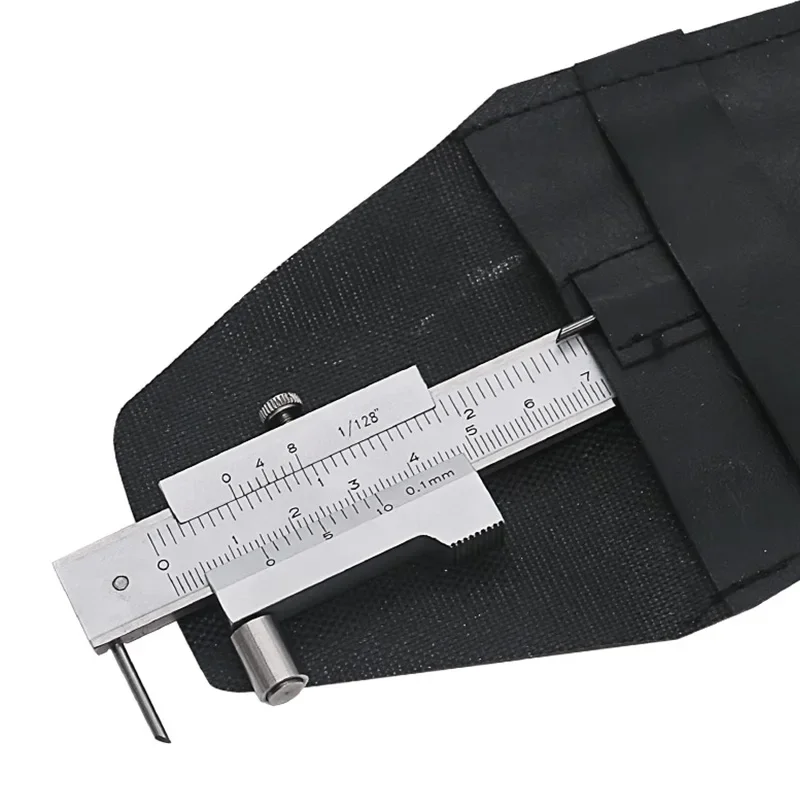

0-200mm Parallel Scribing Caliper with Stainless Steel Ruler
$9.09

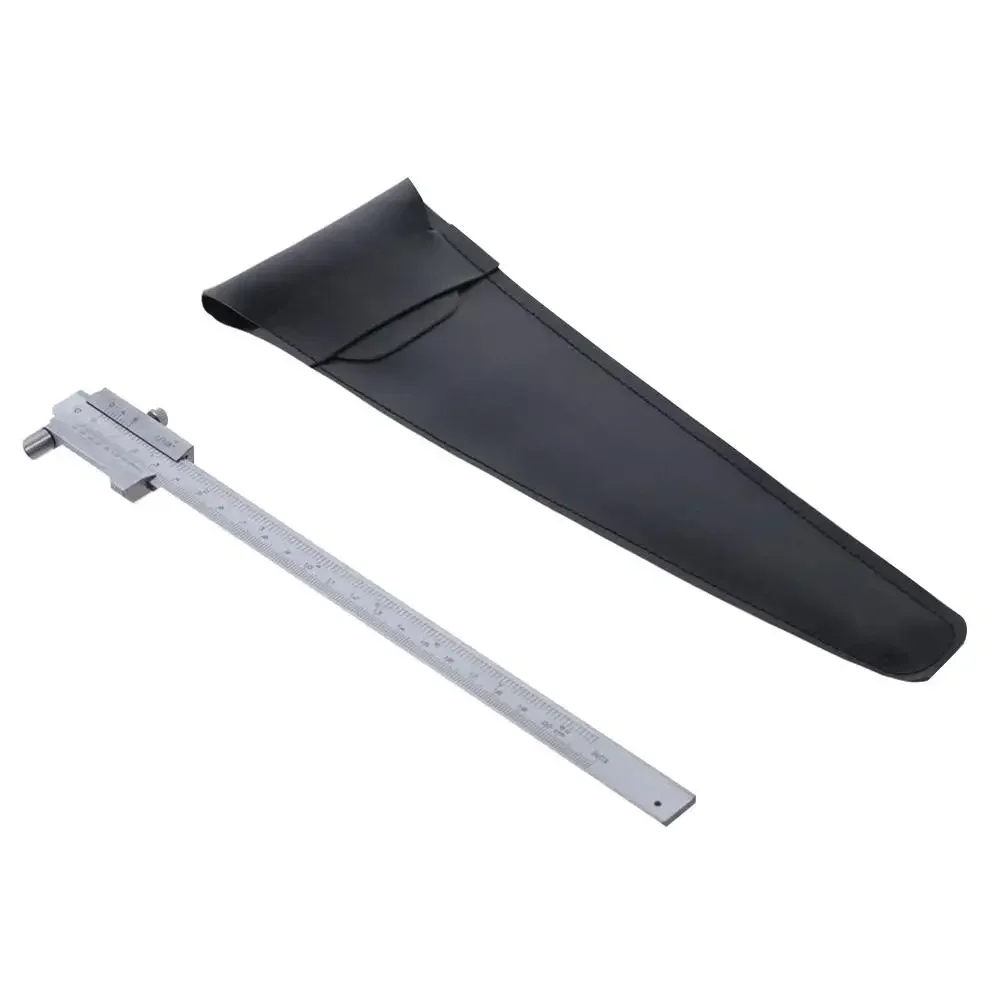

Stainless Steel Vernier Caliper 200mm/8"
$14.05
0-200mm Marking Vernier Caliper with Carbide Scriber
Original product price and exact brand/model unknown, preventing direct price comparison
| material | carbide | Carbide Scriber |
|---|---|---|
| type | scribing caliper | Marking Vernier Caliper |
$16.89
Close — see differences
Buy on AliExpress — $16.89Carbide Needle Parallel Marking Scribe Caliper (0-200mm)
No reference image available to confirm exact model match
| material | carbide | Carbide |
|---|---|---|
| type | scribing caliper | Carbide Needle Scriber |
$8.24
Close — see differences
Buy on AliExpress — $8.240-200mm Parallel Scribing Caliper with Stainless Steel Ruler
Candidate is described as 'multifunctional' with semicircular gauge feature, which may differ from a basic scribing caliper
| material | carbide | Stainless Steel |
|---|
$9.09
Close — see differences
Buy on AliExpress — $9.09Stainless Steel Vernier Caliper 200mm/8"
No reference image available to confirm exact model or brand match
| material | carbide | Stainless Steel |
|---|---|---|
| type | scribing caliper | Vernier Caliper |
$14.05
Close — see differences
Buy on AliExpress — $14.05Is a cheap digital caliper worth it?
For everyday measuring the cheap ones are genuinely fine. In an independent shop shoot-out the budget calipers measured true out of the box, and the cheapest good performer matched a Mitutoyo costing many times more. For 3D printing, reloading, woodworking and general DIY where you need to be good to a couple of hundredths of a millimetre, a no-name caliper is enough tool. It is cheap enough that you can just replace it when it starts acting up instead of babying it, and the tool body itself is not the fire or shock risk that cheap chargers and power banks are, because it draws from a single coin cell with no mains plug or charging circuit.
When it arrives, close the jaws fully and confirm it reads zero, then measure something of known size such as a gauge pin or a drill shank five times without moving anything. A good unit repeats within one display step and returns to zero, and if it swings or will not hold zero, wipe the beam clean and reseat the cell before deciding the tool is faulty.
Where the cheap ones cut corners
The real hazard is the swallowable coin cell
A cheap digital caliper runs on a loose silver-oxide button cell, and regulators treat that cell, not the tool, as the real danger. CPSC has recalled no-name digital gadgets whose coin battery a child could reach too easily, and a swallowed cell can start burning a child's esophagus within about two hours.
Sources: livenowfox.comncbi.nlm.nih.gov
It skips the child-safety features a compliant unit has
On a bargain caliper the battery door slides off with a thumb and the spare cell arrives loose in a bag with no warning label. US law (Reese's Law) requires that compartment to be secured and the swallow hazard labeled, which is exactly the compliance gap that gets no-name imports pulled.
Sources: ifixit.comcompliancegate.com
It never really switches off, so the cell dies in a drawer
Pressing off only blanks the display while the chip keeps tracking the jaw position, so the button cell drains even in storage and is often flat when you next reach for it. One hobbyist measured almost no difference between on and off, whereas branded absolute-encoder models hold their zero powered down and run for years on one cell.
Grit, damp or a knock can make the reading jump
The scale is just a bare circuit board capacitively coupled to a printed strip, so swarf, condensation, or a slightly warped beam can swamp the sensor and flip the display to a wrong number. It works fine kept clean and dry, but a sealed premium caliper is far more stable.
Sources: woodgears.cahackaday.com
The fine last digit is resolution, not accuracy
A screen reading to 0.01 mm or 0.0005 inch is not accurate to that level, because the electronics interpolate the final digit and cheap units are typically only good to about 0.02 to 0.03 mm. Trust the reading to roughly a hundredth of a millimetre and treat the last figure as noise.
Sources: cnccookbook.comgearprism.com
Quality is a lottery and the jaws wear
Fit and finish vary from one unit to the next, and the stainless jaws slowly lose their parallelism as they wear, which quietly throws readings off. The premium you pay a name brand mostly buys the same quality in every box.
Sources: hackaday.comgearprism.com
'Carbon fiber' really means plastic, and the frame flexes
The lightweight sets sold as carbon composite are plastic bodies that bend under normal finger pressure, so the reading shifts with how hard you squeeze. Fine for rough sizing, not for anything you need to trust to a couple of thou.
Sources: cncphilosophy.com
A cheap branded caliper is almost certainly a counterfeit
Genuine 6-inch Mitutoyo Digimatic calipers sell for well over USD 100, so a branded-looking one at a bargain price is a fake. Counterfeits look right at a glance but drift out of calibration and can read wrong.
Sources: mitutoyo.comasbmet.com
The honest bottom line
Buy the cheap one if you are a hobbyist, 3D printer, woodworker or reloader who needs to measure to a couple of hundredths of a millimetre and is happy to replace a cheap tool when it acts up. Spend up if you need certified accuracy you can trust to the last digit, you use it daily and hate finding it dead, or the jaws must stay parallel for years, because a branded absolute-encoder model holds its zero and runs for years on one cell. If there are small children in the house, the safer buy is a battery-free vernier or dial caliper, which measures fine and removes the coin-cell hazard entirely.
Drawn from consumer-safety regulators and medical poison-control guidance, tool teardowns and repair forums, machinist and metrology references, and the maker's own counterfeit notice. No seller listing was used.
More sources: hackaday.comcnccookbook.comgearprism.comgearprism.comcnccookbook.comhardell.comtruetex.com
Specs compared, side by side
| Spec | Scribing Caliper | 0-200mm Marking Vernier Caliper with Carbide Scriber |
|---|---|---|
| material | carbide | Carbide Scriber |
| type | scribing caliper | Marking Vernier Caliper |
Where they actually differ
- Diff 1: Candidate is 0-200mm range with carbide scriber and vernier scale (0.1mm / 1/128" resolution) — original specs unconfirmed
- Diff 2: Candidate includes a carrying case and spare needle, which may or may not match the original bundle
FAQ
Is this AliExpress Marking Vernier Caliper actually the same tool as the reviewed scribing caliper?
The verifier returned a 'functional_equivalent' verdict, meaning the AliExpress 0-200mm Marking Vernier Caliper with Carbide Scriber performs the same core function as the reviewed product. However, the original brand and exact specs were unconfirmed, so a direct model-for-model match cannot be guaranteed. The AliExpress candidate features a 0-200mm range, a 0.1mm / 1/128" vernier resolution, and a carbide scriber tip — specs the original listing did not explicitly publish. It also bundles a carrying case and spare needle, which may or may not replicate the original package.
What does 0.1mm / 1/128" resolution actually mean for layout and marking work?
The vernier scale on this caliper resolves to 0.1mm on the metric side and 1/128 of an inch on the imperial side, making it suitable for woodworking joinery, metalworking layout lines, and light engineering marking where sub-millimetre accuracy is needed. It is not a digital readout, so the user must interpolate the vernier lines directly — acceptable for most hand-tool work but slower than a digital caliper for rapid repeated measurements. Tasks requiring tighter tolerances (±0.02mm or better) would call for a digital or dial caliper instead.
Why does a carbide scriber tip matter compared to a standard steel scribing point?
Carbide is significantly harder than tool steel, so the tip stays sharp far longer when scribing hardwood, aluminium, fibreglass, or mild steel — materials that quickly dull a plain steel needle. The AliExpress listing includes a spare needle, which is useful if the carbide tip chips on very hard or abrasive surfaces such as ceramic tile or hardened steel. For soft woods and plastics, the durability difference is less critical, but for repetitive production marking on metal the carbide tip is a meaningful upgrade.
Is a 0-200mm (roughly 8-inch) range wide enough for cabinetmaking and furniture layout?
A 200mm range covers the vast majority of furniture joinery tasks — setting mortise positions, marking tenon shoulders, scribing panel reveals, and duplicating measurements up to about 7.87 inches. For wider carcass work (e.g., scribing a full cabinet side to an out-of-plumb wall) a longer fence or a dedicated marking gauge would be more practical. Within its 200mm span, however, this caliper doubles as both a measuring and direct-transfer scribing tool, reducing the need to transcribe dimensions to a separate gauge.
Does the included carrying case add meaningful value, or is it just packaging?
A rigid carrying case protects the carbide tip and vernier jaw faces from contact damage during storage — important because a bent or chipped scriber renders the tool inaccurate without the spare needle. At $17.70 the bundle (caliper + case + spare needle) represents good value if the case is semi-rigid rather than a thin cardboard sleeve, though the listing does not specify case material. Buyers who already store tools in a roll or chest may find the case redundant, but it does make the tool safer to carry to a job site.
Can this vernier caliper be used for inside measurements or only for scribing and outside dimensions?
A standard marking vernier caliper of this type is primarily designed for outside measurement and direct scribing; the jaws are typically configured with a scriber arm rather than dedicated inside-measuring nibs. The 0-200mm vernier scale does allow outside dimensions to be read and transferred, but inside groove or bore measurement — common with a standard vernier caliper — is not the intended use case here. Buyers needing inside diameter readings should confirm the jaw geometry before purchase or supplement with a separate inside caliper.
