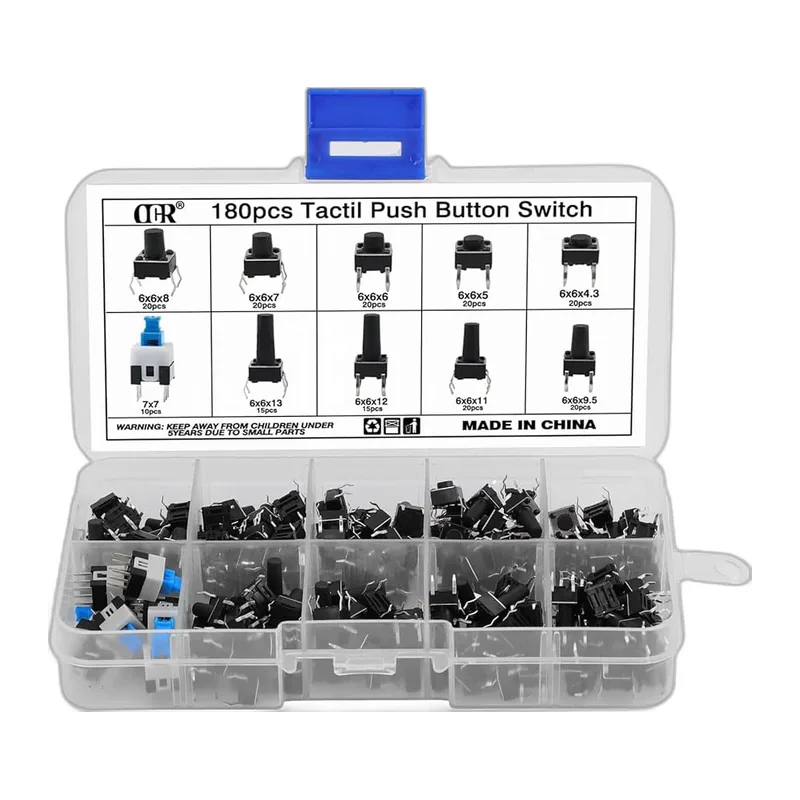

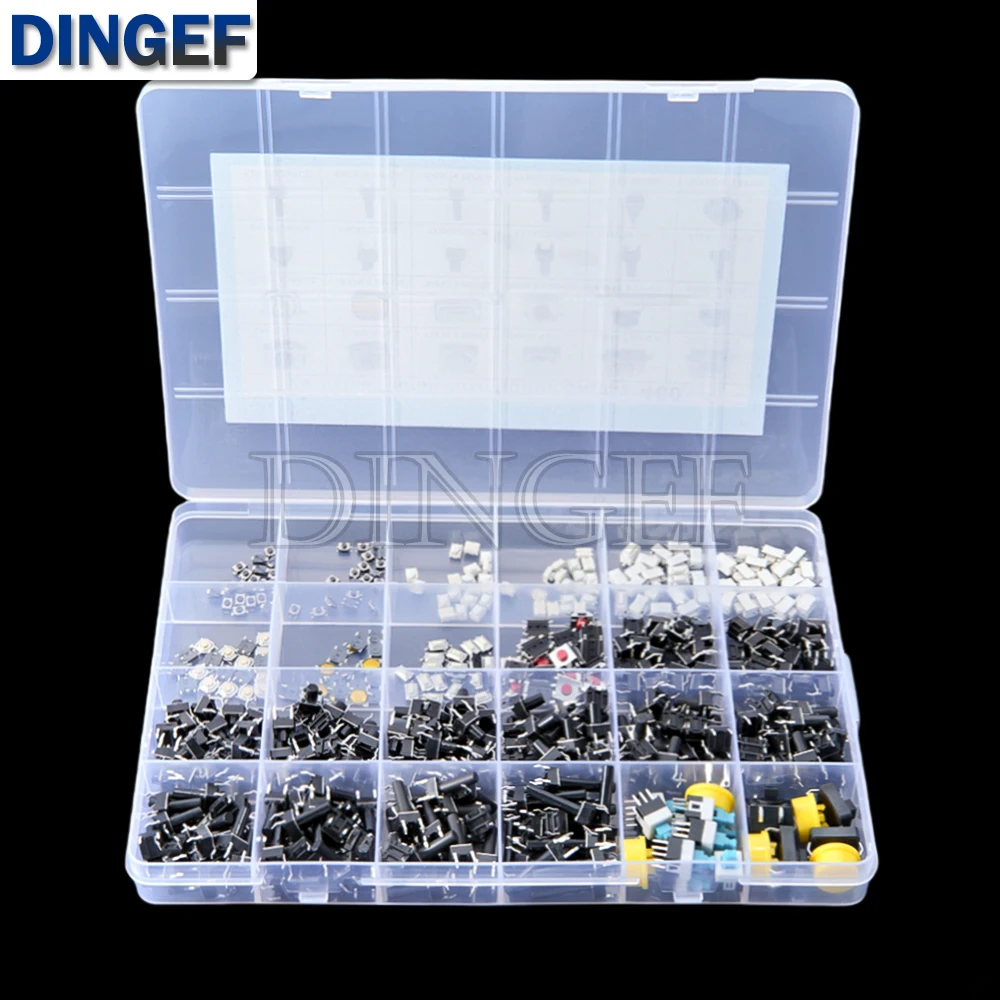

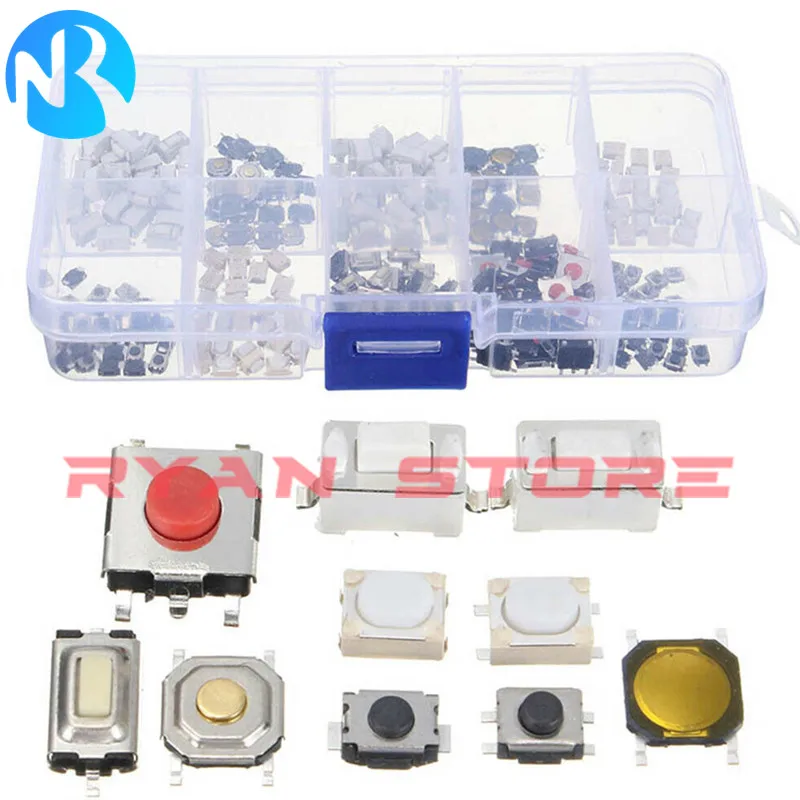

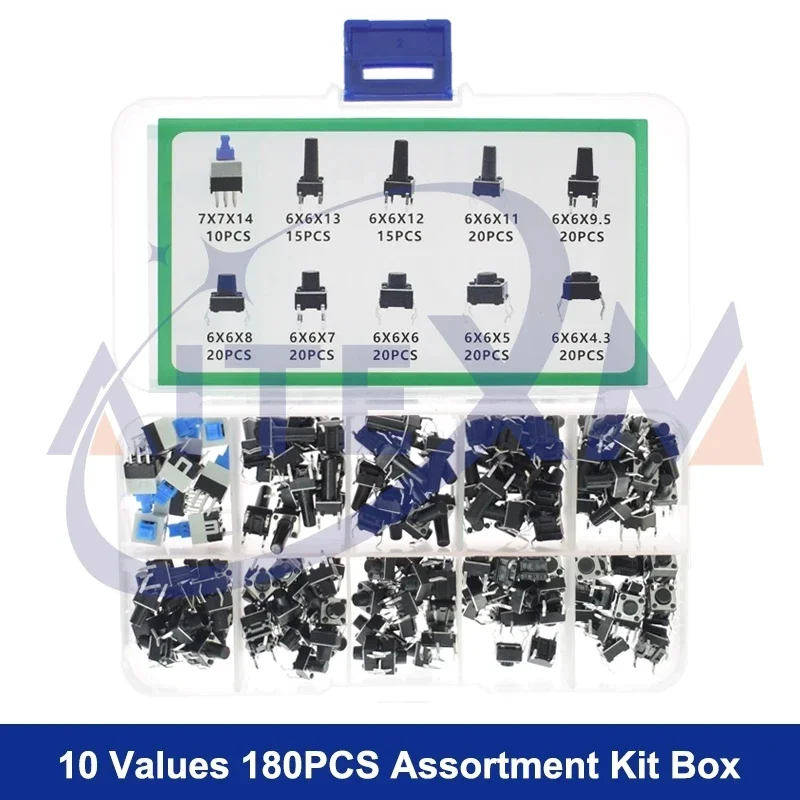

AliExpress alternative to the Tactile Switch Component Kit 10 Compartments

Is a cheap electronic component kit worth it?

For learning, breadboarding, and throwaway prototypes a cheap component kit is genuinely useful, and the passive parts are what the hobbyist community actually trusts from budget sellers. Independent bench tests of cheap assortments found the resistors well within their 5 percent tolerance apart from the two extreme values, and a batch of 90 assortment electrolytic capacitors came back with only one dud and better-than-typical ESR. Even a torn-down 60-cent knockoff chip was fully functional, just off-spec on accuracy a beginner would never notice. The risk is not the passive bin, it is the project-critical active parts.

On arrival, spot-check the active parts. Drop every transistor and IC into a cheap component tester (about $10, such as an LCR-T4) to compare gain and pinout against the datasheet, and read each electrolytic cap's ESR rather than just its microfarads, since that catches the common off-spec fakes in seconds even if not every clever one.

Where the cheap ones cut corners

• Small transistors are the most-faked part

  The little three-legged parts like 2N2222, BC547 and 2N3904 often bench-test with a current gain far below the datasheet, and some even have their pins in the wrong order. Any circuit that relies on the transistor performing to spec can misbehave or simply not work.

  Sources: blog.hjf.com.ar · hackaday.com

• Regulators and chips can be counterfeit, and the label is not proof

  In a no-name kit the semiconductors are where counterfeiting concentrates, and a part can wear a genuine-looking logo while being relabelled scrap or the wrong die. Some fakes fail unsafely, like a counterfeit regulator that goes dead-short under voltage.

  Sources: hackaday.com

• The chips can be a different part than the print says

  Buyers who ordered cheap 74LS logic chips have received 74HC parts with faked markings. The two families run different logic levels, so a circuit built for one can behave erratically on the other even though the part looks right.

  Sources: hackaday.com

• An unverified capacitor can rupture or catch fire

  You cannot see a capacitor's true voltage rating or health from the outside, and underrated or aged electrolytics can build up gas and burst their cans. Tantalum types can go into thermal runaway, so it is the one part in the box that can physically fail dangerously on the bench.

  Sources: en.wikipedia.org · gideonlabs.com

• A fake cap can read the right value yet be dead

  With recycled or counterfeit electrolytics a plain capacitance meter is not enough, because the microfarad value can read in-spec while the part is open-circuit or has high internal resistance. You have to check more than the capacitance number.

  Sources: jandkaudiodesign.blogspot.com · sound-au.com

• Lead in the parts and solder is a real hazard

  This class of cheap no-name electronics and their solder is repeatedly pulled from the EU market for lead far above the RoHS limit, over 60 percent by weight in some solders. You handle bare component legs by hand and lead harms brain development, so keep the parts away from children and food surfaces.

  Sources: greensofttech.com · p65warnings.ca.gov

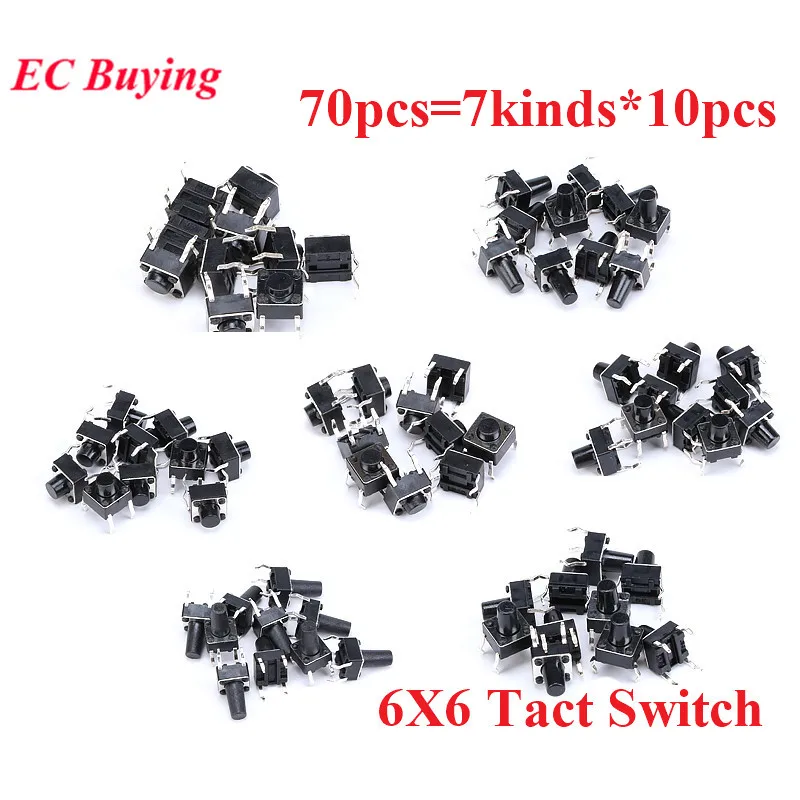

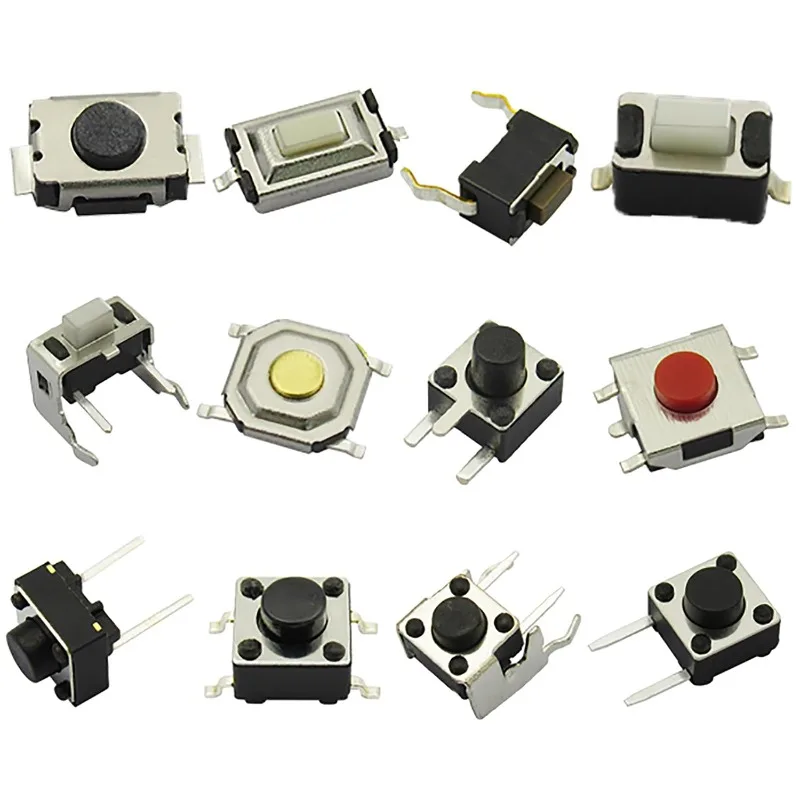

• The tactile buttons wear out and go intermittent

  The tact switches are the only moving parts in the box, and the metal snap dome fatigues or traps dust and flux over time, giving high contact resistance and randomly missed presses. Fine for a project, but do not design a heavily-used control around one and expect it to last.

  Sources: vistarelectronics.com

• The extreme resistor values drift out of tolerance

  An independent bench test of a cheap assortment found the mid-range values spot-on, but the very lowest and highest values fell outside the printed band. If your design leans on a 1 ohm or multi-megohm value, measure it rather than trusting the color code.

  Sources: chinese-electronics-products-tested.blogspot.com

• The leads and the box are the real weak point

  Reviewers note the thin leads seat poorly in breadboards and the tidy compartment layout collapses the first time you rummage for a value. It is a storage and handling annoyance more than an electrical one.

  Sources: kk.org

• Semiconductors can pass a test, then fail in service

  An audio-electronics authority documents that cheap online power transistors sold with kits are often remarked fakes that survive bench testing and then die later. If a kit's active parts matter to your build, treat them as suspect until proven.

  Sources: sound-au.com

• A price far below the going rate is the tell

  Genuine name-brand semiconductors have a floor price, so a normally-pricey part listed far below what real distributors charge is usually the counterfeit showing through, not a bargain. It is the cheapest red flag to read before you even buy.

  Sources: sound-au.com

• Most fakes are salvage re-marked to look new

  When a cheap kit does contain counterfeits, the usual trick is blacktopping: the original marking is sanded off a scrap part and a new number printed on top, often with re-plated leads. The number on the package is not proof of what is inside.

  Sources: cofactr.com

Drawn from independent hobbyist bench tests, electronics repair and teardown write-ups, an audio-electronics engineering authority, counterfeit-detection guides from component distributors, an EU market-recall roundup, and California and encyclopedia references on lead and capacitor safety. No seller or listing was used as a source.
